SPECIFICATIONS:
Operates from 4.8-60 V
0V with optional auxiliary battery
Measures 0-200 A, resolution 0.01A;
0-60 V, resolution 0.01V;
0-6554 W, resolution 0.1W;
0-65 Ah, resolution 0.001Ah;
0-6554 Wh, resolution 0.01Wh;

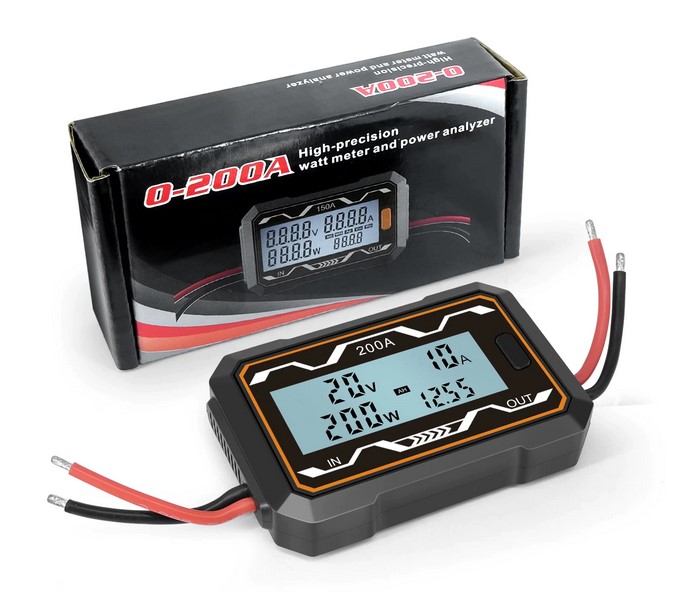

Functions “Watt Meter” and Power Analyzer

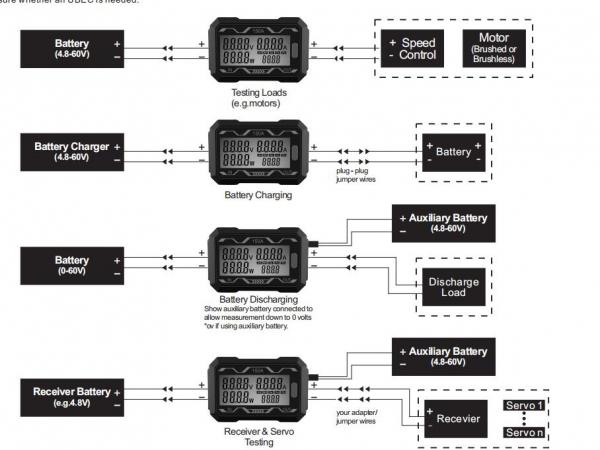

Measures EIGHT parameters key to electric power safety & performance, Use it to: Prevent peak currents damaging battery.
Motor Control, motors, wiring and connectors. Verify sufficient operating voltage under load. Set cutoff voltages, cheek battery capacity &
health. Balance battery cells. Confirm proper battery charger operation. Detect receivers and actual operating current so as to make
sure whether an UBEC is needed.
