Futaba - 6K 6ch 2.4G T-FHSS Radio Set Mode 1
Manufacturer: Futaba Product Code: 6KA
6K 6 channel 2.4G T-FHSS radio set with R3006SB receiver

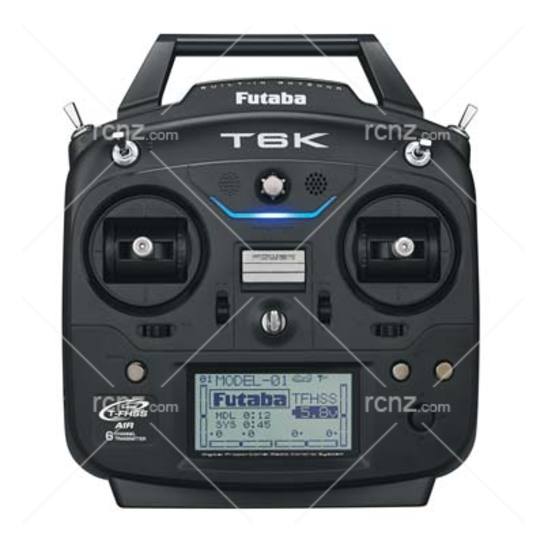

This is the Futaba 2.4GHz 6K Air Radio System
with the R3006SB T-FHSS SBUS, SBUS2 Receiver.
Servos and Sensors Not Included.
This is the airplane version which will default to airplane settings
when powered up and has a ratcheted throttle stick.
| FEATURES |
Telemetry system (T-FHSS) provides data on receiver battery
voltage, external voltage, temperature, RPM, altitude and
variometer (sensors not included and must be purchased separately,
see COMMENTS below)
S.Bus/S.Bus2 servo setting functions programmable through transmitter
R3006SB receiver can use SBus as the main link/communication to
servos, or a combination of SBus and conventional outputs together
Programmable mixing for airplanes, helicopters, gliders and multi-
rotors
Four assignable switches, three 3-position and one 2-position
Switch/VR position change and AUX channel function change
Updateable software through the Futaba CIU-2 USB PC Interface
not included
Programmable mixing (3-Normal, 1-Curve)
Wing Type (5-Wing, 2-Tail)
Throttle Cut V-Tail
Dual Rate/Expo Camber
Throttle Curve Air Brake
Idle Down Gyro
Aileron Differential Elevon Mixing
Elevator to Flap/Flap to Elevator Mixing
Transmitter also compatible with S-FHSS receivers
30 model memory, model naming up to 8 characters
Auxiliary channel
Parameter functions
Servo monitor/test
Throttle position warning
Wireless model data transfer
Timer-system & model (Up/Down)
Trainer system (trainer cord required)
Fail safe
End points
One year limited warranty through the Futaba Service Center
beginning at date of purchase
| INCLUDES |
Futaba 2.4GHz 6K Transmitter
R3006SB Receiver
Switch Harness
| REQUIREMENTS |
AA Batteries: Four for transmitter
Sensors and Servos of modeler's choice
| SPECIFICATIONS |
Transmitter;
Transmitting Frequency: 2.4GHz band
System: T-FHSS Air, S-FHSS switchable
Power Supply: Four AA batteries
Receiver;
Power Requirement: 4.8V~7.4V battery or regulated output from ESC
Size: 1.7 x 0.98 x 0.35 " (43.1 x 25.0 x 8.8 mm)
Weight: 0.3 oz. (8.5g)
Battery: F/S Voltage
| COMMENTS |
The following Futaba sensors are available;
SBS-01T Temp Sensor
SBS-01TE EP Temp Sensor
SBS-01A Altitude Sensor
SBS-01RM Magnet Type RPM Sensor
SBS-01RO Optic RPM Sensor
SBS-01RB Brushless Motor RPM Sensor
