Futaba - 6L Sport 6ch T-FHSS Radio Set Mode 2
Manufacturer: Futaba Product Code: 6LH24G
6L Sport 6ch T-FHSS Radio Set - Mode 2

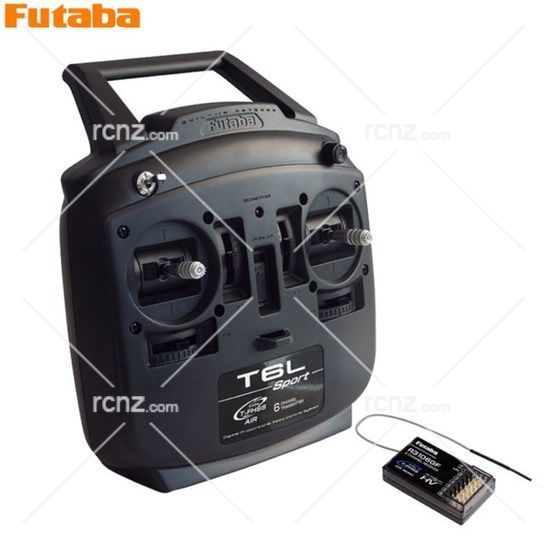

This is the Futaba T6L Sport 6-Channel T-FHSS Air Radio System.
Transmitter and R3106GF Receiver Only, Servos Not Included.
FEATURES |
Elevon, V-Tail and Flaperon mixing
Built-in full-range transmitter antenna
Trainer function (student only), Trainer Cord required (not included)
AUX channel 5 switch function
Aux channel 6 dial function
Fail safe function on throttle channel (ch 3) moves throttle servo
to a predetermined position in the event of radio interference
Servo reversing
Low battery alarm
Link mode
Range check
One year limited warranty through Hobby Services beginning at date of
purchase
INCLUDES |
T6L Sport 6-Channel T-FHSS Air Radio System with the R3106GF
Receiver and Instruction Manual
REQUIREMENTS |
Four AA batteries for transmitter
Servos of pilot's choice
SPECIFICATIONS |
T6L Sport Transmitter;
Type: 2-stick, 6-channel, T-FHSS Air (Mono Directional) 2.4GHz system
Transmitting Frequency: 2.4GHz
System: T-FHSS Air (Mono Directional), no telemetry
Power Supply: 6.0V dry battery
R3106GF Receiver
Type: T-FHSS Air (Mono Directional) 2.4GHz system, no telemetry
Power Requirement: 4.8-7.4V battery, or regulated output from ESC,
etc.*
Dimensions: 1.7 x 0.98 x 0.35" (43.1 x 25.0 x 8.8mm)
Weight: 0.3oz (7.8g)
*When using ESC make sure that regulated output capacity meets usage
application.
COMMENTS |
The Futaba T-FHSS Air system cannot be used with Futaba
S-FHSS/FASST/FASSTest systems. The T-FHSS Air and the T-FHSS
surface systems are different.
Mode 2 ready (throttle on the left) with instructions on how to change to Mode 1 (throttle on the right)
