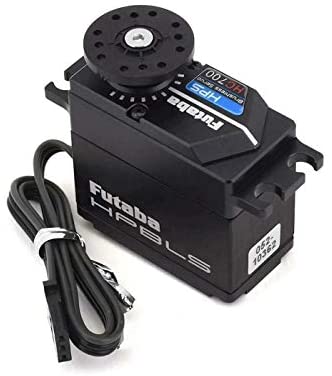

Futaba - HC700 High Performance Brushless Heli Servo
Manufacturer: Futaba Product Code: HPS-HC700
HC700 High Performance Brushless Heli Servo
The Futaba HPS-HC700 is the new high-performance servo for helicopter models (especially for F3C competition) that require medium torque (20kg/cm) but high operating speed (0.08 sec/60°) when used on 7.4V. In addition to those specifications the HC700 uses a new HPS brushless motor that was developed to draw the least current possible and produce very little heat. The aluminium case is only 40.5 x 21 x 37.8mm in size and is made from metal for optimal strength and cooling.
Specifications | |
---|---|
High Voltage | Yes |
S.BUS | S.Bus & S.Bus2 |
Case | Metal |
Weight | 73g |
Gear Type | Metal |
Dimensions | 40.5 x 21 x 37.8mm |
Speed | 0.07 sec/60 deg @7.4V |
Speed | 0.08 sec/60 deg @6.6V |
Torque | 20 kg/cm @ 7.4V |
Torque | 18 kg/cm @ 6.6V |
Electric Motor | Brushless |
