Surpass - F540 Car Brushless Water-Proof Motor 4370Kv & 60A ESC Combo image

Surpass - F540 Car Brushless Water-Proof Motor 4370Kv & 60A ESC Combo

Manufacturer: Surpass Hobby Product Code: F540+60A

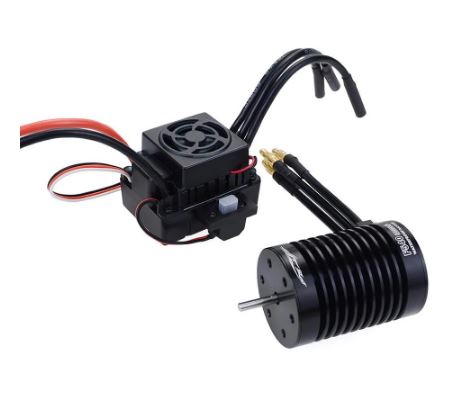

F540 Car Brushless Water-Proof Motor 4370Kv & 60A ESC Combo

price
$108.00
Dispatch
Available - Ships in 2-5 Business Days

Features:

4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
High Purity Copper Windings Maximizes Efficiency
High RPM ABEC5 Oversized Bearings
Universal fit,fits all 1/10 brushless cars-multi-mounting system for M3 screws
Precision balanced rotor,smoothness for best reliability and maximum RPM
Stator - Super Thin (0.35mm) Laminations
Removable/Replaceable Rotor
Precision Engineered for Maximum Energy Conversion

Motor Specifications:

F540 4370KV Motor
Size: 540
Watts: 800W
Max voltage: <9.6V
Max Amps: 66A
KV(RPM/Volt): 4370KV
Max RPM: 50000
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug

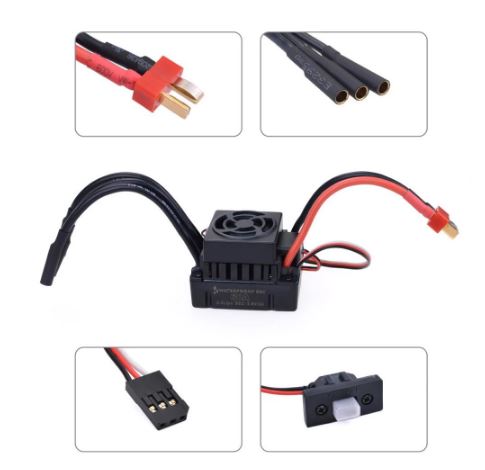

60A ESC Specifications:
Continue current: 60A
Burst current: 360A
Battery: 2S Li-Po / 4S Ni-Mh Ni-Cd
BEC output: 5.8V / 3A
Power supply plugs: T plug male
Motor plugs: 4mm banana plug female
Dimension: 51.5 * 38.5 * 38.5mm (without cables)

Package List:

1 x F540 Motor
1 x 60A ESC
