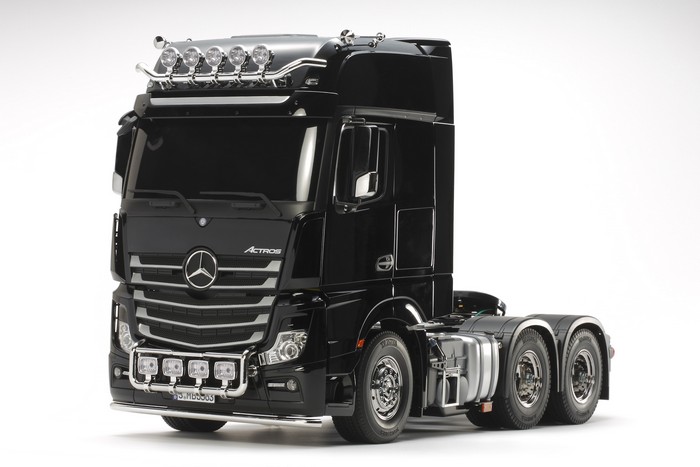

Tamiya - 1/14 Mercedes Benz Actros 3363 Gigaspace Kit image

Tamiya - 1/14 Mercedes Benz Actros 3363 Gigaspace Kit

Manufacturer: Tamiya Product Code: 56348


56348 1/14 Mercedes Benz Actros 3363 Gigaspace Kit

Out of
stock
$799.00
Dispatch
Out of Stock
In-Stock Alert
We'll email you when it's in stock

This is a highly accurate 1/14 scale radio control model that recreates the Mercedes Benz Actros 3363 3-axle truck. The Actros series debuted in 2011 and was named 2012 Truck of the Year. Powered by a 15.6-liter inline-6 turbocharged diesel putting out a max of 630hp, the actual 3363 can haul up to 250 tons!
The Tamiya rendition faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts. The chassis is built for durability as it uses aluminum side channels with resin cross members. Driveability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately-sold 4-channel transmitter.

The Actros' realism can be further heightened with separately-available trailers that can be attached to its coupler and make the model over a meter in length!

Product Specifications (Specifications subject to change)

TypeDetail
Scale 1/14
Construction type Assembly kit
Terrain use On-Road
Drive-train 4-axle semi
Drive type Gearbox
Drive line Dog bone
Differential type Gear
Suspension Leaf spring
Steering mechanism Bell-crank
Shock damper Friction damper
Shock damper material Aluminum
Tire type Rubber
Tire tread Radial
Body material ABS Plastic
Chassis material Aluminum & plastic
Electronic Speed Control (ESC) Not included
ESC model N/A
LED Light buckets Yes
LED lights No
Motor 540-brushed type
Bearings Metal bushings
Adjustable camber Fixed
Adjustable toe angles Front only
Adjustable ground clearance Fixed
Adjustable gear ratio 3-speed transmission
Adjustable wheelbase Fixed
Adjustable track width Fixed
Adjustable shock angle Fixed
Special feature 1 Length: 538mm, Width: 195mm, height: 305mm
Special feature 2 The body of the Actros 3363 is recreated accurately using newly-molded parts differentiating it from the 1851 spec model
Special feature 3 The tried and tested Tamiya 3-axle chassis utilizes a tough ladder frame with aluminum side channels and resin cross members. A realistic drivetrain setup sees the front mounted motor powering twin rear axles.
Special feature 4 3-speed transmission can be controlled via 4ch R/C transmitter. Item 7255252 is the perfect radio to compliment the Actros kit
Special feature 5 Metal leaf spring dampers with built-in coil springs provide durable suspension
Special feature 6 Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailers
Special feature 7 Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi-Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds
Special feature 8 Compatible with the tractor truck option parts (TROP) Items 56531, 56532 and 56536. Use with Multi-Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds
Requires A 4-channel radio gear
Requires B Electronic speed control
Requires C TS plastic model paint
Requires D 7.2 battery & charger

CLICK HERE for a radio, servo, battery, charger & paint combo
