VQ Model - B-24 Liberator EP/GP 32 Size ARF Kit - 2.8m Wingspan
Manufacturer: VQ Model Product Code: VQA152
B-24 Liberator EP/GP 32 Size ARF Kit - 2.8m Wingspan
The Consolidated B-24 Liberator is an American heavy bomber, designed by Consolidated Aircraft of San Diego, California. It was known within the company as the Model 32, and some initial production aircraft were laid down as export models designated as various LB-30s, in the Land Bomber design category.
At its inception, the B-24 was a modern design featuring a highly efficient shoulder-mounted, high aspect ratio Davis wing. The wing gave the Liberator a high cruise speed, long range and the ability to carry a heavy bomb load. Early RAF Liberators were the first aircraft to cross the Atlantic Ocean as a matter of routine. In comparison with its contemporaries, the B-24 was relatively difficult to fly and had poor low-speed performance; it also had a lower ceiling and was less robust than the Boeing B-17 Flying Fortress. While aircrews tended to prefer the B-17, General Staff favored the B-24 and procured it in huge numbers for a wide variety of roles.[5][6] At approximately 18,500 units – including over 4,600 manufactured by Ford Motor Company – it holds records as the world's most produced bomber, heavy bomber, multi-engine aircraft, and American military aircraft in history.

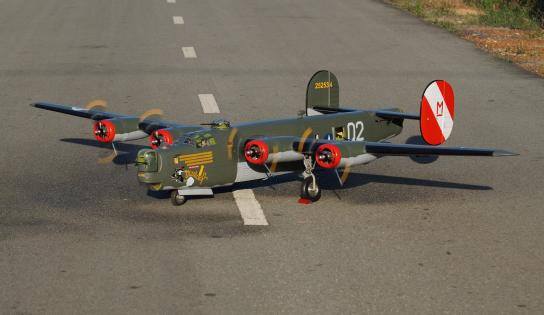

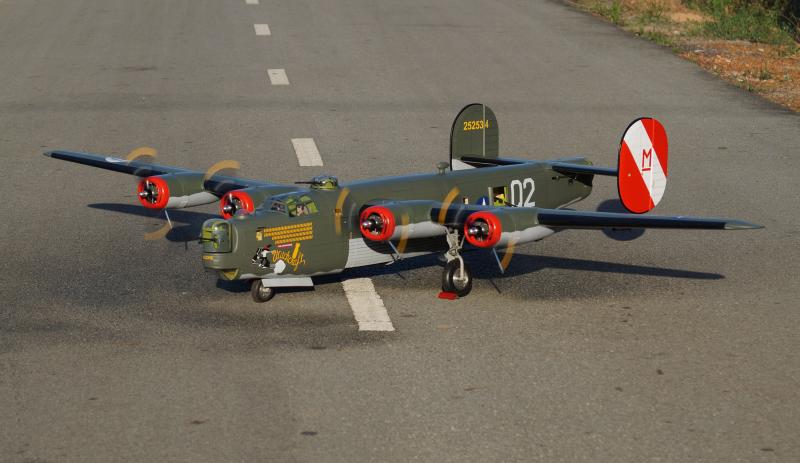

This VQ ARF's reproduction B-24 Liberator R/C aircraft is designed for modern electric motor systems with big battery hatch on the top of fuselage . At its core, this model has a very scale outline and features many details not usually found on an ARF wood model.
$60 FREIGHT APPLIES TO THIS ITEM (DELIVER TO CLOSEST PBT DEPOT ONLY)
Features:
- All Balsa and lite-ply construction
- Fully covered in weathered detail
- Plastic Canpoy Withrepainted Pilot
- Battery hatch
- Fiberglass cowling
- Control surfaces pre-hinged and installed
- Two piece wing with 2x Aluminium Wing Joiner
Specifications:
- Wingspan: 2800mm
- Fuselage Lenght: 1700mm
- Weight (ready to fly): 10200-11000 grams
- Electric Motor: Boost 40 Motor or any motor same power with 32 size engine 2 stroke
- Engine: 25-32/2 stroke or 40-52 4/stroke (x4)
- Radio: 9 Channels minimum-8 Servos
- Battery: Lipo 14.8V 3200 mAh(x4)
- Servo: 6x17 grams servos (4 for Throttle, 2 x Rudder ), 12 x mini servos (4 for turret, 4 for flaps and 4 for drop bomb ), 5 standard servos (2 for aileron, 2 for elevator and 1 for nose gear).
Includes:
- Assembly instructions with stage photos
- Nose gear and main gear
- Plastic canopy
-Plastic turret
- Bomb door by wood
- Wheels
- Painted pilot
- Engine mount a Ply wood Model Mount (for both GP and EP)
- Fuel tank
- Decals and all hardware
Option:
- E-retracts with struts :VQ-ARE30/FM ( Full metal E-retracts )
- Bomb sets: VQB01
Does not include: radio, motor, glue, and silicon fuel line
