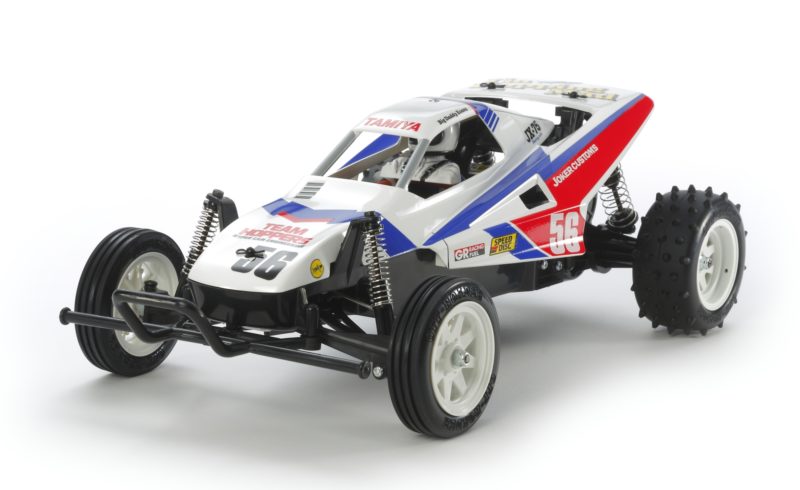

Tamiya - 1/10 Grasshopper II 2017 Kit
Manufacturer: Tamiya Product Code: 58643
58643 1/10 Grasshopper II 2017 Kit
The Grasshopper II is one of Tamiya's iconic radio control car kits from the late 1980's. It was an enhanced follow up release to the original Grasshopper kit. This re-release (2017) kit features a number of updates while keeping largely faithful to the original model. Its streamlined construction process makes this kit perfect for less experienced users and R/C veterans alike, while separately sold option parts can be used to enhance the model.
Product Specifications (Specifications subject to change)
| Type | Detail |
|---|---|
| Scale | 1/10 |
| Construction type | Assembly kit |
| Terrain use | Off-Road |
| Drive-train | 2WD |
| Drive type | Gearbox |
| Drive line | Solid axle |
| Differential type | Gear |
| Suspension | Independent front/solid axle rear |
| Steering mechanism | Direct servo |
| Shock damper | Friction damper |
| Shock damper material | Plastic |
| Tire type | Rubber |
| Tire tread | Grooved front/pin spike rear |
| Body material | ABS Plastic |
| Chassis material | Plastic |
| Electronic Speed Control (ESC) | Not included |
| LED Light buckets | No |
| LED lights | No |
| Motor | 380-brushed type |
| Bearings | Plastic bushing |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Fixed |
| Adjustable gear ratio | Fixed |
| Adjustable wheelbase | Fixed |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | Length: 400mm, width: 221mm, height: 139mm |
| Special feature 2 | The Grasshopper II body is molded in durable polystyrene resin, and has a driver figure for attachment. |
| Special feature 3 | Features a rugged ABS resin bathtub chassis. |
| Special feature 4 | Front swing axle and rear rolling rigid suspension setups are actuated by coil-sprung friction dampers. |
| Special feature 5 | Fully enclosed rear gearbox contains a differential gear to aid smooth cornering. |
| Special feature 6 | Front ribbed tires give great straight-ahead grip, and rear spike tires provide powerful drive. They are matched with 8-spoke one-piece lightweight wheels. |
| Special feature 7 | Compatible with tune-up parts such as standard Type 540 motors (requires nine 1150 ball bearings & one 850 ball bearing) and CVA mini oil dampers. |
| Special feature 8 | Requires ESC |
| Requires A | 2-channel radio gear, steering servo & ESC |
| Requires B | 7.2 battery & charger |
| Requires C | TS plastic model paint |
