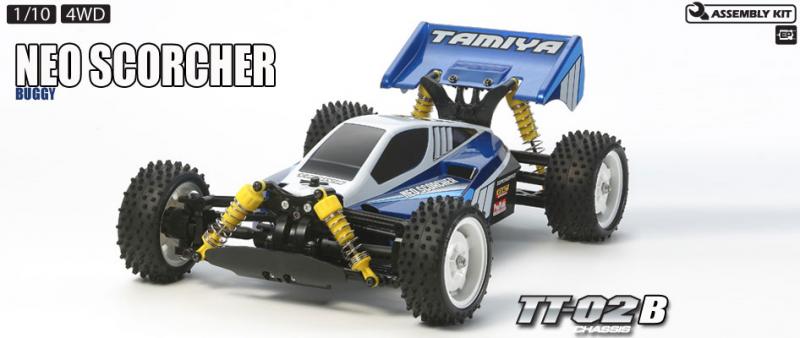

This is the first off-road buggy to be released on the new TT-02B chassis platform. The TT-02B is based on the TT-02 entry level multi-purpose platform designed to be easy to assemble for first time R/C kit builders.

While the main tub chassis and 4WD shaft drive-train are the same as the TT-02, the suspension is new to accommodate off-road rugged running.

Specification

• Scale : 1/10
• Construction type : assembly kit
• Terrain use : off-road
• Drive-train : 4WD
• Drive type : gearbox
• Drive line : dog bone
• Differential type : gear
• Suspension : fully independent double wishbone
• Steering mechanism : bell-crank
• Shock damper : oil-filled damper
• Shock damper material : plastic
• Tire type : rubber
• Tire tread : pin spike
• Body material : Polycarbonate
• Chassis material : plastic
• Electronic Speed Control (ESC) : Not included
• LED Light buckets : no
• LED lights : no
• Motor : 540-brushed type
• Bearings : plastic bushing
• Adjustable camber : fixed
• Adjustable toe angles : front only
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : fixed
• Special feature 1 : Includes 540 RS Torque Tuned Motor
• Special feature 2 : Uses the TT-02 base bathtub main chassis and drive-train for easy maintenance
• Special feature 3 : Longitudinally-placed battery and R/C gear placed flat for a low center of gravity
• Special feature 4 : Uses robust plastic dogbones for high durability and easy maintenance
• Special feature 5 : Includes sealed compartment to keep dirt and debris from receiver.
• Requires A : 2-channel radio gear and ESC
• Requires B : 7.2 battery & charger
• Requires C : polycarbonate paint
