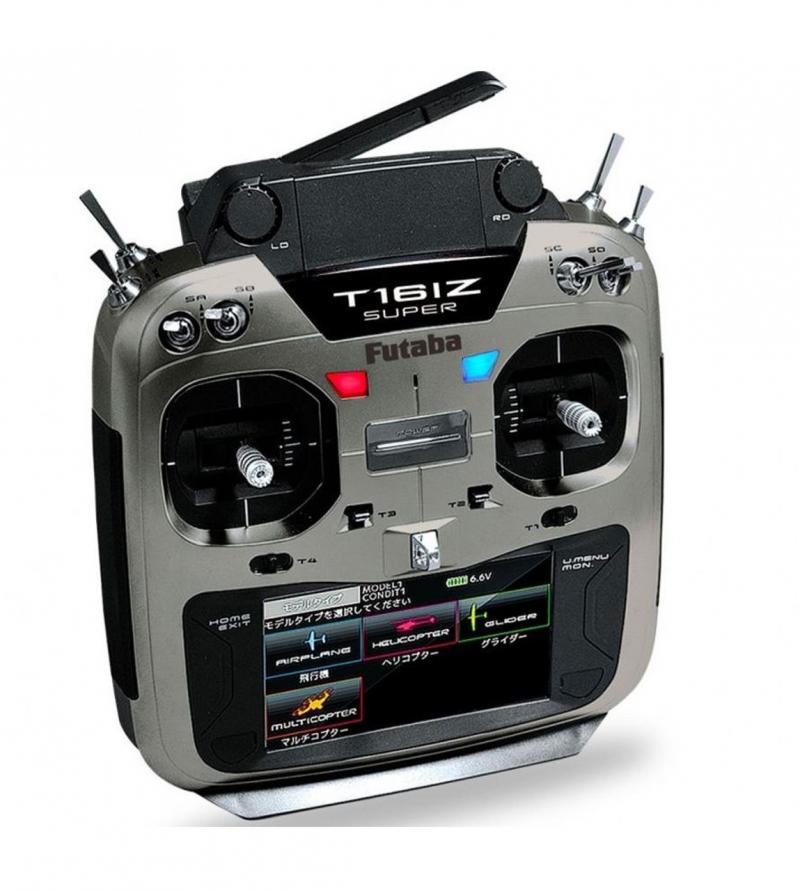

With the Futaba T16iZ Super computer remote control you make the affordable jump to the professional class! The new transmitter design with large color touch display and ergonomically optimized shape guarantees perfect operation of the clear transmitter software. The T16iZ Super supports the established transmission modes T-FHSS, FASSTest and S-FHSS.

NEW: In combination with the FUTABA SBS-01ML S.BUS Sensor Adapter (available soon) the transmitter supports the MAVLink protocol. MAVLink or Micro Air Vehicle Link is a protocol for communication with small unmanned vehicles. It is a very simple messaging protocol for communication with drones (and between drone parts on board). MAVLink follows a modern hybrid publish-subscribe and point-to-point design pattern: data streams are sent/published as topics, while configuration sub-protocols such as the mission log or parameter log are point-to-point with retransmission.

With the S-BUS/S.BUS2 servo function, all parameters of S.BUS/S.BUS2 servos can be set individually via the transmitter.

The transmitter is fully equipped with 8 switches, 2 rotary encoders and 2 rear-mounted slide encoders. All controls are ergonomically placed for perfect operation during flight. The ball bearing control sticks impress with their precision and unique adjustability. The spring force and the ratchet function can be adjusted from the outside on the joysticks. Each stick function also features digital trim. The Futaba T16IZ is furthermore equipped with an S.BUS and a headphone connection, as well as a trainer/DSC connection.

The transmitter comes standard with powerful software for motorized aircraft, gliders, helicopters and drones (multicopters). The menu navigation is available in 9 languages. Model & telemetry data can be stored and firmware updates for the transmitter can be imported via the SD card reader integrated into the transmitter.

Key Features:

• 16+2 channel computer remote control system
• Professional features for ambitious model sportsmen
• Transmission modes T-FHSS, FASSTest, S-FHSS
• CRFS protocol for Crossfire module
• Receiver R7308SB w. RX-Link & Ant. diversity
• Telemetry function
• Telemetry output via loudspeaker, display or headphones
• S.BUS connection
• Vibration alarm
• Mode Conversion option (from outside) for mode 1 to 4.
• 30 internal model memories, more via SD card
• Memory for model name & user (15 characters)
• Menu navigation in 9 languages
• Large color touch display
• 4 digital trims, 8 switches, 2 encoders, 2 sliders
• Movable antenna position
• Graphical servo monitor
• Firmware updates possible via SD card
• Powerful timer
• 8 flight states per model memory
• 10 free mixers per flight phase for completely free programming
• AFR 3 modes up to 17 points
• 7 wing type menus for powered aircraft, 3 tail planes
• Helicopter menu with swash ring, 8 swashplate types, governor, servo travel and speed compensation, throttle limiter
• Multicopter menu
• 3 curve styles for throttle/pitch with up to 17 points
• Glider menu with 7 wing types & 3 tail types
• Configurable instructor-student system with channel assignment

What's In The Box?

• Futaba 16IZ Super Transmitter
• 7308SB Receiver
• Printed Instruction Manual
• Lithium Battery and USB Charge Cable

Receiver Compatibility:

• R7008SB
• R7208SB
• R7308SB

FASSTest System
The T16IZ SUPER transmitter has adopted the bidirectional communication system "FASSTest". Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels 2.4GHz dedicated system.

Color Touch LCD Screen
T16IZ SUPER has an HVGA 4.3", full-color, backlit LCD touch screen. The screen is transflective which enables booth indoor and outdoor visibility.

S.BUS2 System
By using the S.BUS2 system, multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

Model Types
Multicopter
Helicopters: 8 different swash plate types are available
Airplanes: 7 wing types & 3 tail types are available
Functions and mixers necessary for each model type is set in advance at the factory

Lithium-Ion Polymer Battery
T16IS SUPER is operated by a 7.4V/2000mAh Li-Ion polymer battery.

MicroSD Card (not included)
Model data can be saved to a microSD card (SD: 32MB-2GB / SDHC: 4-32GB). When T16IZ SUPER transmitter software files are released, the software can be updated by using a microSD card update.

Edit Buttons
Two edit update buttons are provided and the operating screen can be immediately "Returned" to the HOME screen during operation. Setting operation can be performed easily by combining this button with a touch sensor.

Vibration Function
Selects a function that aerts the operator to various alarms by vibrating the transmitter in addition to sounding a buzzer.

Speech Function
A function which allows the system to provide telemetry data audibly. This function can also be utilized with commercial available earphones.

Technical Specifications:
Transmission mode: FASSTest / T-FHSS / S-FHSS
Frequency range: 2.4 GHz
Channels: 16+2
Transmit power: 100 mW EIRP
Voltage range: 6.0-7.4 V
Control stick arrangement: Universal Mode (Mode 1-4 adjustable from outside)
Weight approx.: 695 g (without battery), 785 g (with battery)
