HobbyWing Twin Motor 80A ESC for Tamiya Cars

Key Features:

• Fully waterproof design for all conditions.（Note: please clean and dry it after use for avoiding rusty connectors).
• Built-in switch-mode BEC with continuous current of 4A
• Tunable drag brake and drag brake rate for different vehicles,trakes and control feel.
• Adjustable PWM frequency combined with advanced freewheeling (/DEO) technology guarantees great throttle linearity and driving feel.
• 9 levels of acceleration/punch from soft to aggressive for different vehicles ，tires and tracks.
• Multiple protections ：low-voltage cutoff protection ，thermal protection，and throttle signal loss protection.
• Separate programming port to easily connect the LED program card to the ESC.

Technical Specifications:
80A Brushed ESC
Cont./Burst Current: 80A/400A
Input：2-4s Lipo，5-12 Cells NiMH
Connector Type: Tamiya
Motor Type ：Brushed（540/550/775 size motors)
Cars Applicable：1/10&1/8 on-roads/Buggies/Trucks/Monster Trucks/Rock Crawlers & Some Boats
Motor Limit： ①2s lipo or 6cells NiMH ：540 or 550 size motor RPM＜30000@7.2V OR ≥12T
②3s lipo or 9cells NiMH ：540 or 550 size motor RPM＜20000@7.2VOR ≥18T
③4s lipo or 12cells NiMH ：540 or 550 size motor RPM＜15000@7.2VOR ≥24T
Built-in BEC:4A/6V(Switch mode BEC)

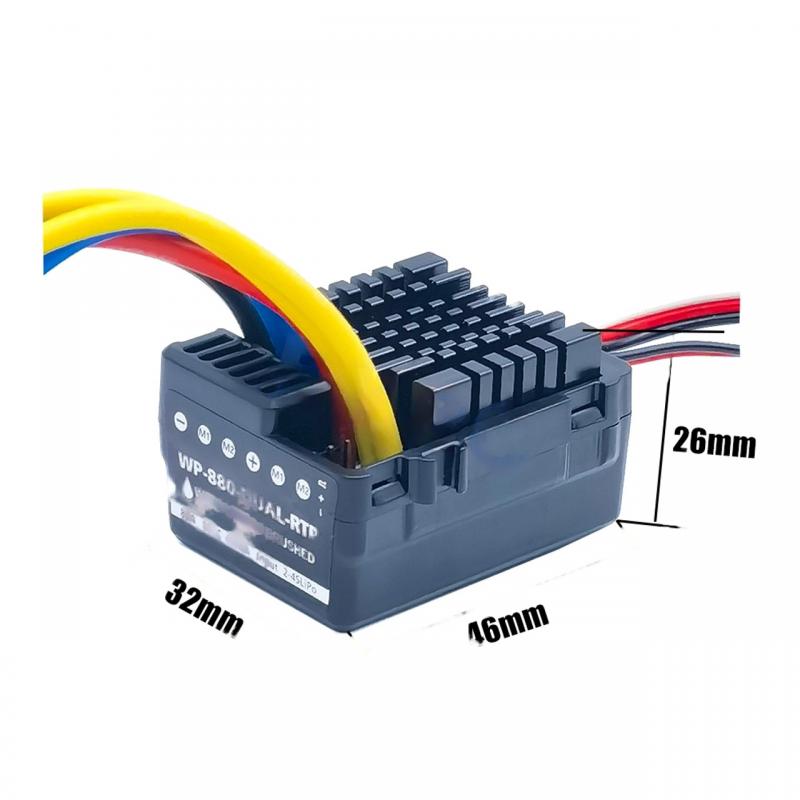

Dimension&Weight:45.9*34.7*26.5mm/75g
Run mode：①forward & brake & reverse mode
