Tamiya - 1/14 Mercedes Arocs 3363 6x4 Truck
Manufacturer: Tamiya Product Code: 56352

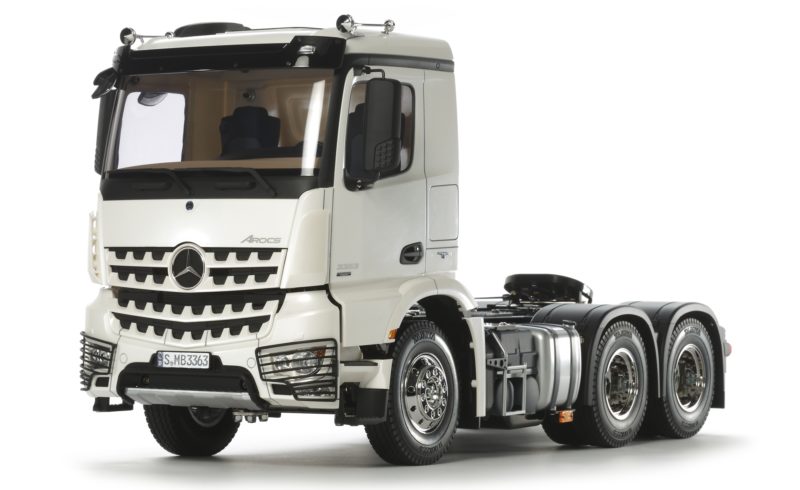

56352 1/14 Mercedes Benz Arocs 3363 6x4 Truck
This 1/14 scale tractor truck recreates the Mercedes-Benz Acrocs 3363 3-axle truck, which is the first narrow bodied European tractor model in the Tamiya Tractor Truck Series. The full-size subject is the German company's heavy duty tractor head that debuted in 2013. Powered by a 630hp 15.6-liter inline-6, the actual Arocs is capable of hauling massive loads of up to 250 tons.
The Tamiya rendition faithfully captures the truck's modern form with the use of ABS plastic body parts and a number of metal chassis components. One look at the detailed interior and auxiliary equipment, such as air tanks, will confirm that the body features replica-quality realism, which is further enhanced with metal transfers depicting emblems and numerous metal-plated parts. The chassis is built for durability as it uses aluminum side channels with resin cross members. Drivability is accomplished by power from the front-mounted motor and is transmitted via a propeller shaft to the rear axle; built-in differential gears guarantee smooth cornering. Gear changes can be made via a separately-sold Tamiya 4-channel transmitter.
Product Specifications (Specifications subject to change)
| Type | Detail |
|---|---|
| Scale | 1/14 |
| Construction type | Assembly kit |
| Terrain use | On-Road |
| Drive-train | 2WD |
| Drive type | Gearbox |
| Drive line | Dog bone |
| Differential type | Gear |
| Suspension | Leaf spring |
| Steering mechanism | Bell-crank |
| Shock damper | Friction damper |
| Shock damper material | Aluminum |
| Tire type | Rubber |
| Tire tread | Radial |
| Body material | ABS Plastic |
| Chassis material | Aluminum & plastic |
| Electronic Speed Control (ESC) | Not included |
| ESC model | N/A |
| LED Light buckets | Yes |
| LED lights | No |
| Motor | 540-brushed type |
| Bearings | Metal and plastic bushings |
| Adjustable camber | Fixed |
| Adjustable toe angles | Front only |
| Adjustable ground clearance | Fixed |
| Adjustable gear ratio | 3-speed transmission |
| Adjustable wheelbase | Fixed |
| Adjustable track width | Fixed |
| Adjustable shock angle | Fixed |
| Special feature 1 | Length: 529mm, width: 190mm, height: 267mm. |
| Special feature 2 | The narrow body of the ClassicSpace variant Arocs 3363 is recreated accurately using newly-molded parts, complete with the distinctive "bucket-tooth" grille. Photo-etched parts recreate cab rear platform. |
| Special feature 3 | Interior details include: seat and dashboard. |
| Special feature 4 | 3-axle chassis utilizes a tough ladder frame with aluminum side channels and resin cross members. |
| Special feature 5 | A realistic drivetrain setup sees the front mounted motor powering twin rear axles. |
| Special feature 6 | 3-speed transmission can be controlled via a 4ch R/C transmitter. |
| Special feature 7 | Highly realistic suspension employs metal leaf spring dampers and friction dampers. |
| Special feature 8 | Coupler is included to enable connection with any currently available Tamiya 1/14 scale trailers. |
| Special feature 9 | Compatible with the tractor truck option parts (TROP) Items 56531, 56532, 56536 and 56538. Use with Multi- Function Control Unit MFC-03 (Item 56523) (or MFC-01, Item 56511) for realistic LED lights and sounds. |
| Requires A | 4-channel radio gear |
| Requires B | 7.2 battery & charger |
| Requires C | TS plastic model paint |
| Requires D | Electronic speed control |
